Callsign Lookup using a Trie

For various ham radio applications, I needed a fast way to look up callsign data based on the callsign prefix. I decided to use a trie data structure to store the callsign prefixes and exceptions. I made it as a JS library and created a simple website in Svelte to demonstrate the working of the library.

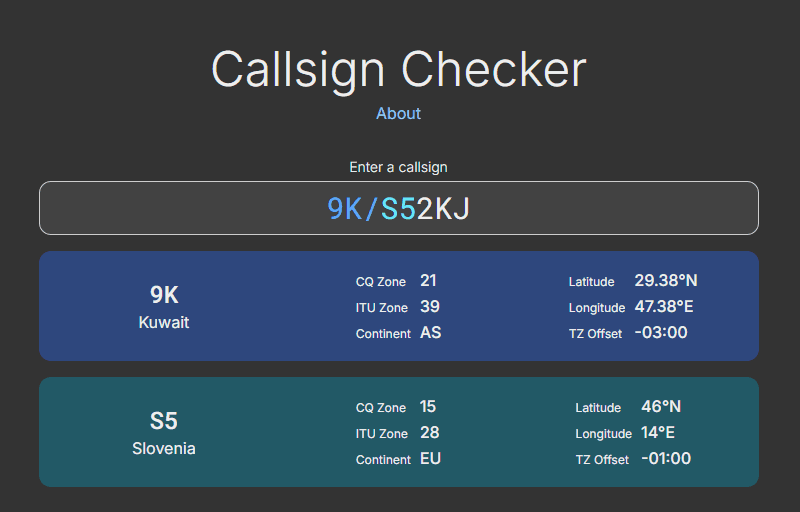

Callsign Checker uses a prefix trie to quickly find the country / DXCC entity, CQ and ITU zones, continent, latitude and longitude and timezone offset for a given callsign.

The trie is built from the Country Files by AD1C. These files are regularly updated to contain the latest information about callsign prefixes and exceptions. Parsing the files and building the trie is done beforehand and the resulting trie is then saved in a custom text format.

Each prefix and callsign exception is added to the trie, with the corresponding DXCC entity and other information. Once the initial trie is built, it goes through a series of optimizations to reduce the size and remove redundant data.

The first step is to traverse the trie and remove any fields and nodes, that when traversed, do not change the result of the lookup. The next step is to look for any nodes that have only one outbound edge and contain no additional information. These nodes get compressed to form a so called Radix tree. Compressing the trie is not that useful when parsing only prefixes, as these are usually very short, but when parsing exceptions, the trie gets significantly smaller with this optimization.

Once the trie is compressed, we can continue with the next step. Analyzing the trie, we can see that there are many nodes that match when comparing them by their outbound edges. These nodes can be merged into a single node, the only change being the inbound edges. We do this in multiple passes, until no more nodes can be merged. Multiple passes are needed, as merging one node can cause another node to be mergeable. This step is the most important one, as it reduces the trie size most significantly.

After all the optimizations are done, the node ids are reassigned to be in a continuous range. This is done to reduce the size of the trie in the final format. The trie is then saved in a custom text format. The format is optimized for size and speed of parsing.

Using the latest BIG CTY file (19 June 2024) that has 27.000 prefixes + exceptions and building the raw trie makes 78.000 nodes which written in the custom format is 1.2MB. With all the optimizations applied, the trie is reduced to 5.700 nodes and a file size of 0.2MB.

The beauty of using tries is that the lookup time is O(n), where n is the length of the callsign. This means that the lookup time is constant, no matter how many prefixes or exceptions are in the trie.
